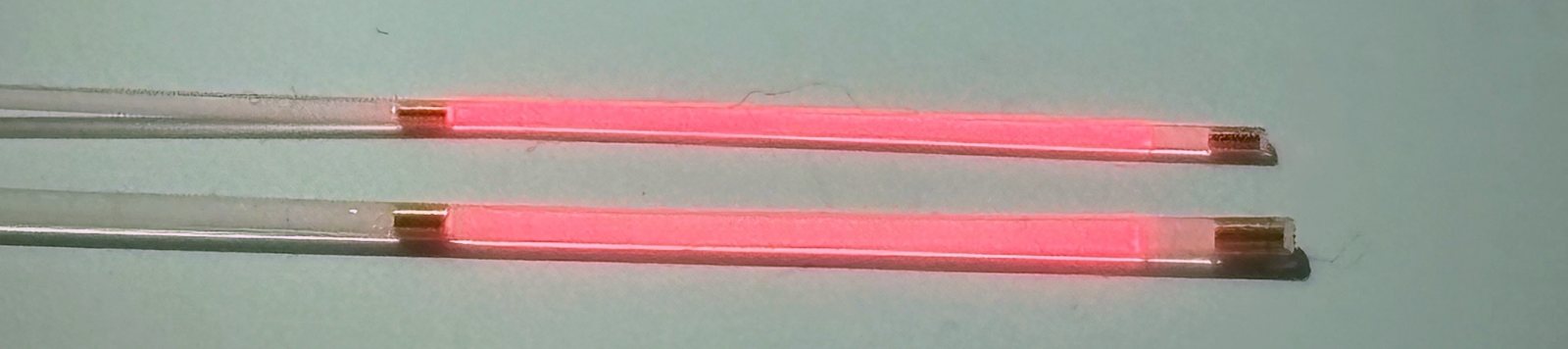

LifePhotonic cylindrical diffusers are CE-marked fiber optic light applicators that emit light radially and uniformly along a diffusing length of 5 to 90 mm. They are intended for illumination in phototherapies.
Developed and manufactured by LifePhotonic GmbH in Bonn, Germany, under a quality management system certified to ISO 13485 and EU MDR (2017/745).
Intended for illumination in phototherapies in the following areas:
| Model | Characteristics | Access |
|---|---|---|
| CD-2S3-xx | very thin and flexible | compatible 20G catheter available |
| CD-403-xx | very flexible | suitable for 3 Fr, best used with transparent catheter |
| CD-4L3-xx | self-supporting, flexible diffusor, e. g. for bronchoscopy | suitable for 4 Fr |
| Parameter | CD-2S3-xx-z | CD-403-xx-z | CD-4L3-xx-z |
|---|---|---|---|
| Mechanical | |||
| Tip diameter | 0.75 mm | 0.98 mm | < 1.2 mm |
| Overall length of fiber | 3.0 m | ||
| Short-term bending diameter | 25 mm | 40 mm | |
| Optical | |||
| Typical transmission | > 80 % | ||
| Diffusor length* (xx) | 05 – 40 mm | 10 – 90 mm | |
| Uniformity of diffusor | ± 20 % | ||
| Max. power density | 600 mW/cm | ||
| Max. power ex diffusor | 2.5 W | ||
| Wavelength* | 600 – 800 nm | ||
| Numerical aperture | 0.37 | ||
| Core diameter* | 200 µm | 400 µm | |
| Fiber connector* | SMA 905 | ||
* other dimensions on request

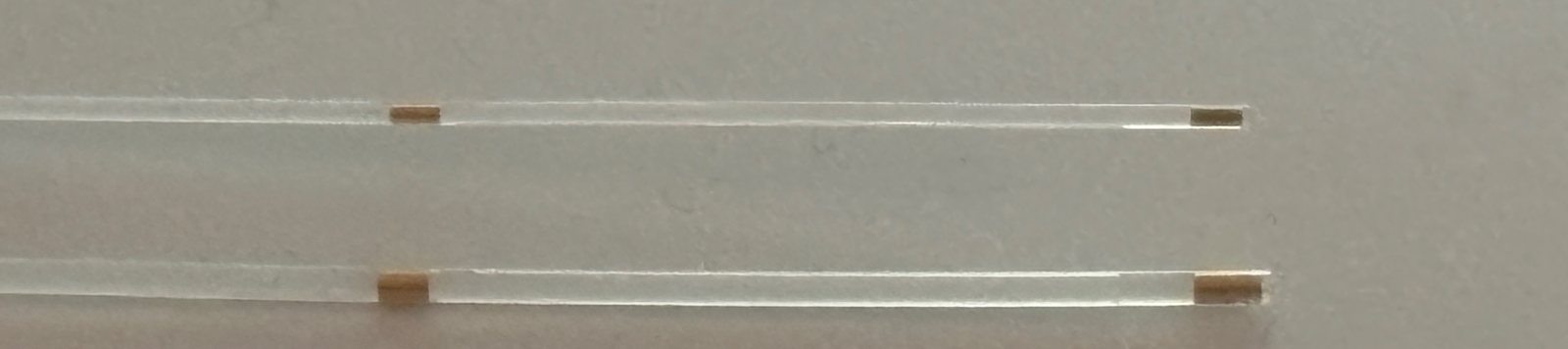

With 2 X-ray markers (z = MX), with 1 X-ray marker (z = M), or without X-ray marker (z = 0).
Ordering code example: CD-2S3-20-MX = CD-2S3, 20 mm diffusing length, 2 X-ray markers.
The CD-2S3 (tip diameter 0.75 mm). A compatible 20G catheter is available.
The CD-2S3 has been tested for compatibility with the following flexible ureteroscopes (3.6 Fr working channel): Olympus URF-P6 and URF-P7, Karl Storz Flex-X2S, Richard Wolf Cobra, Boston Scientific LithoVue and Pusen Uscope. Tests covered insertion, positioning at maximum tip deflection (270–275°), 10-minute illumination at 200 mW/cm and retraction – without damage to fiber or endoscope.
Compatibility tested by LifePhotonic. Product names are trademarks of their respective owners. The listing does not imply endorsement by the endoscope manufacturers. Always follow the Instructions for Use of the diffuser, the laser and the endoscope.
The CD-4L3 is self-supporting and flexible and suitable for 4 Fr working channels, e. g. for bronchoscopy.
All major phototherapy lasers with SMA 905 connector, in the wavelength range 600–800 nm. Other wavelengths and connectors on request.
With PDT lasers from Omicron Medical, Modulight (ML6710i, ML7710) and Intermedic (Multidiode 630 PDT, Multidiode 753). Other lasers with SMA 905 connector work as well. For a specific model variant of a laser, please ask us about your combination.
Compatibility tested by LifePhotonic. Product names are trademarks of their respective owners. The listing does not imply endorsement by the laser manufacturers. Always follow the Instructions for Use of the diffuser and the laser.
Yes, with X-ray markers (options MX or M).
Yes. LifePhotonic supplies innovative trial versions and supports clinical studies – see Support for Clinical Studies on the products page.
Yes – the CD-2XS2 ultra-thin diffuser (~450 µm, 2 m, research use only, not CE marked).
Please state the model, diffusing length, X-ray marker option, your laser and, if possible, the application area.
pdt@lipho.eu · +49 228 9339 8400
LifePhotonic GmbH · Droste-Huelshoff-Str. 3 · 53129 Bonn · Germany
